Extrusion Line/for UPVC/PVC-C Solid Wall Pipe Exruder

Product Description

• Origin: China
• Weight: 13-29kg
• Voltage: 380
• Screw L/D: 38;1
• Trademark: Perfect
• Screw Design: Single-Screw
• Specification: Customized
• Transport Package: Packing Belt+Plywood Pallet+Carton
• Production Capacity: 30000pieces/Month
• Screw Diameter (mm): 120

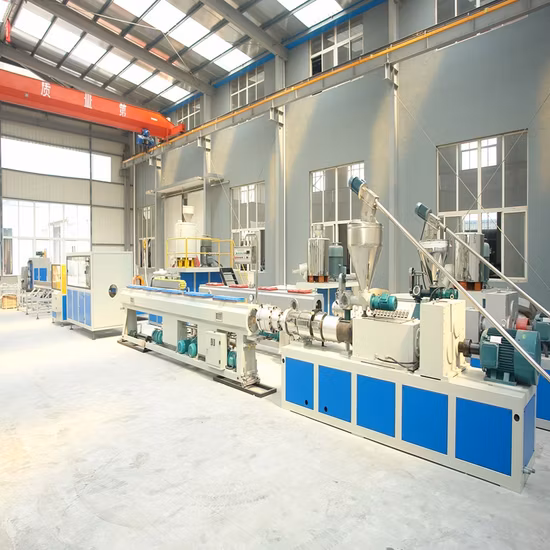

UPVC/PVC-C Solid Wall Pipe Extrusion Line The PVC pipe extrusion line is primarily used for producing UPVC/PVC-C water supply and sewage pipes, with pipe diameters ranging from 16mm to 800mm. Its uniquely engineered structure and high-efficiency performance make it a popular choice for pipe manufacturers worldwide.
**Main Technical Parameters:**
| Pipe Diameter (mm) | 20–63 | 50–110 | 75–250 | 90–315 | 160–450 | 315–630 |

Main Extruder | 65/33 | 65/33 | 75/33 | 75/33 | 90/33 | 120/33 |
| Extruder Power (kW) | 37 | 55 | 110 | 132 | 160 | 280 |
| Max Capacity (kg/h) | 120 | 180 | 330 | 380 | 450 | 750 |

**Application:** The UPVC/PVC-C Solid Wall Pipe Extrusion Line is designed primarily for polyolefin pipe production. When combined with the GF series auxiliary machines, it can also be adapted for various other plastic processing applications. The line features a high-efficiency single screw extruder, equipped with: - Extrusion vacuum calibration tank - Cooling and spray system - Haul-off machine - Planetary cutting unit - PLC microcomputer control system These components ensure stable operation, high output, and the consistent production of high-quality plastic pipes.
